Product Name	Side wall Semi Trailer
Dimension(Lx W x H)(mm)	1240026101550mm (customizable)
Inside dimension	12280mm*2300mm600mm (customizable)
Tare weight (kg)	7500 (depends on final configuration)
Max Loading Capacity (kg)	40-80ton(customizable)
Main Beam	Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable)
Side Beam	16mm channel steel(material is Q235B steel)
Bottom plate thickness (mm)	3mm (customizable)
Sidewall Thickness (mm)	1.2mm (customizable)
side wall height	600mm (customizable)
Axles	13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim	9.00-22.5/8.00-20/8.50-20
King Pin	2"(50mm)or3.5"(90mm) JOST or other brand optional
Suspension	Mechanical Suspension Air Suspension(American or Geman)
Leaf Spring	90(w)mm13/16(thickness)mm10(layer)
Twist-lock	12 units (customizable)
Landing Gear	28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Brake System	Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums
ABS System	None or installed as your requirement.
Electrical system	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.)
Color	As per customer requirement
Spare Wheel Bracket	1 piece of Spare Wheel Bracket
Tool box	1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting	Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting;
Packing	Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
Delivery	From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
Remarks	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
Electrical SYSTEM	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.)
Spare Wheel Bracket	1 piece of Spare Wheel Bracket
Accessory	1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
Packaging and delivery	Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
remarks	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Tag:

sidewall semi trailer,

Dettagli dei prodotti

prodotti

Semi-remolchio a letto basso

semirimorchio per container

Rimorchio dei semi della parete laterale

Semi-remolchi per autoveicoli

Semi-remolchi di scarico/sbalzo

Van&Curtain Side Semi-Trailer

Recinto Semi Trailer

Semi-remolchi per il trasporto di animali

rimorchio dei semi dell'autocisterna

Trailers agricoli e altri full trailer

Howo autocarro con cassone ribaltabile

testa del trattore

Trailers speciali

Parti di ricambio per rimorchi

Nuovi veicoli di energia

Veicoli speciali

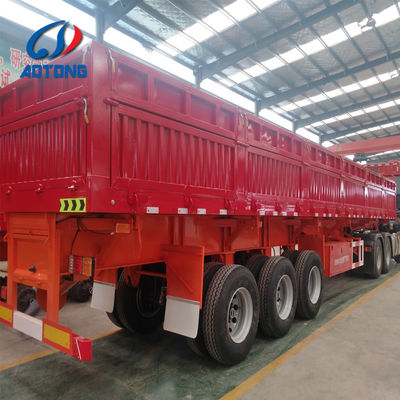

40-100 Ton Dropside Steel Semi Truck Trailer with Air Suspension

MOQ:	1 UNIT
imballaggio standard:	Export standard
Periodo di consegna:	25 days
metodo di pagamento:	T/T

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Place of Origin

CHINA

Marca

AOTONG

Certificazione

ISO,CCC

Suspension:

Mechanical Or Air Suspension

Tyre Specifications:

12R22.5

Main beam:

Heavy duty I beam.

Kin pin:

2’’/3.5’’ bolt type

Braking system:

Double air chamber ,brake valve,45L air tanks ;ABS optional

Electrical:

LED light , 7 ways ,24V

Painting:

Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

Minimum Order Quantity:

1 UNIT

Packaging Details:

Export standard

Delivery Time:

25 days

Payment Terms:

T/T

Evidenziare

40-100 ton steel semi truck trailer

dropside semi trailer with air suspension

steel side wall semi trailer
