Fence Cargo Semi Trailer(Customerize and OEM Service Available)
Application	Coal/ Livestock/Vegetable/Cargo Loading
Product Name	2 axles fence semi trailer	3 axles fence semi trailer	4 axles fence semi trailer
Size	9500/1100025002800/3800 (mm)	12500/1300025002800/3800 (mm)	12500/1300025002800/3800 (mm)
Payload	30-60Ton	30-80Ton	40-100Ton
Main beam	Height: 500mm, upper plate is 12mm, middle plate is 6mm, down plate is 14mm ; Material is Q345B Steel.	Height: 500mm, upper plate is 16mm, middle plate is 10mm, down plate is 18mm ; Material is Q345B Steel.	Height: 500mm, upper plate is 18mm, middle plate is 12mm, down plate is 20mm ; Material is Q345B Steel.
Axles	2*13T/16Ton/ FUWA/BPW/Other	3*13T/16Ton/FUWA/BPW/Other	4*13T/16Ton / FUWA/BPW/Other
Side Wall Height	600mm-1700mm (can be customized)
Side beam	16mm channel steel (Material is Q235B steel)
Bottom Platform	3mm checquered steel plate
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	90(width)mm13(thickness)mm10 layer(especial for exporting market)
Tire	12R22.5 / 11.00R20 8/12pcs (Other size optional)
Rim	9.00-22.5 / 11.00R20 8/12pcs (Other size optional)
Kin pin	Jost brand 2.0 or 3.5 inch
Landing gear	Jost brand 28Ton two speed
Braking system	Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
Electrical	LED light , 7 ways ,24V
Tool box	One piece 1m 0.5m0.5m ( size can be customized)
Twist locks	Optional
ABS	Optional
Painting	1.Sand blasting processing clean rust.2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice.
Shipping terms	By bulk vessel, RORO, or 40HQ container

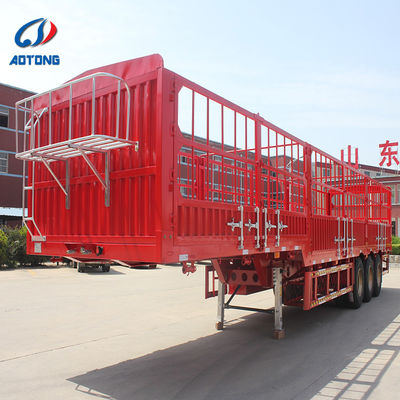

Fence Semi Trailer with Mechanical or Air Suspension 12R22.5 Tyres 0

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Tag:

fence trailer,

Dettagli dei prodotti

prodotti

Semi-remolchio a letto basso

semirimorchio per container

Rimorchio dei semi della parete laterale

Semi-remolchi per autoveicoli

Semi-remolchi di scarico/sbalzo

Van&Curtain Side Semi-Trailer

Recinto Semi Trailer

Semi-remolchi per il trasporto di animali

rimorchio dei semi dell'autocisterna

Trailers agricoli e altri full trailer

Howo autocarro con cassone ribaltabile

testa del trattore

Trailers speciali

Parti di ricambio per rimorchi

Nuovi veicoli di energia

Veicoli speciali

Fence Semi Trailer with Mechanical or Air Suspension 12R22.5 Tyres

MOQ:	1 unità
imballaggio standard:	Standard di esportazione
Periodo di consegna:	25 giorni
metodo di pagamento:	T/t

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

Cina

Marca

AOTONG

Certificazione

ISO,CCC

Sospensione:

sospensioni meccaniche o pneumatiche

Specifiche di Tiro:

12R22.5

Fascio principale:

Un'operazione pesante, mi teletrasporto.

Pin di parentela:

Tipo di bullone 2/3.5

Sistema frenante:

Doppia camera d'aria, valvola del freno, serbatoi d'aria da 45L; ABS facoltativo

Elettrico:

Luce a LED, 7 vie, 24V

Pittura:

Sabbiatura e pulizia della ruggine, 1 mano di fondo, 2 mani di finitura

Quantità di ordine minimo:

1 unità

Imballaggi particolari:

Standard di esportazione

Tempi di consegna:

25 giorni

Termini di pagamento:

T/t

Evidenziare

Fence Semi Trailer with mechanical suspension

Fence Semi Trailer with air suspension

Fence Semi Trailer 12R22.5 tyres
