Specifications
Overall Dimension (Lx W x H)(mm)	1250025001600+600mm
Tare Weight(KG)	6500
Loading Weight( KG)	60000
Wheel Base(mm)	7450mm+1310mm+1310mm
Semi Trailer Chassis
Platform plate	3mm Diamond plate
The material of Main beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Side beam	Q235 16# channel steel
Axle Brand	13TON Axle FUWA/BPW Brand
Axle Number	Three
Suspension system	Mechanical Suspension
Leaf spring	90(W)mm13(Thick)mm10 Layer
Landing Gear	28ton Chinese brand,double speeds,Jost
Tire Type and quantity	12R22.5 12units,Triangle
Wheel Rim	9.00-22.5
Traction Pin	2” or 3.5”,Jost
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Electrical & Paint
Brake system	Dual Line braking system
Brake air chamber	Six double chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Painting	Color as customer’s requirement
Packing&Shipping
Packing	Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint
Delivery way	Transfer to Qingdao/Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.

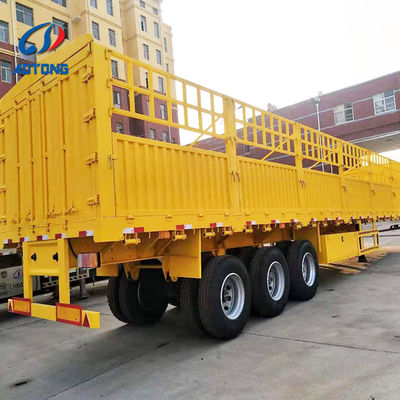

Custom Steel Sugar Cane Harvest Semi-Trailer with Livestock Fence 0

Custom Steel Sugar Cane Harvest Semi-Trailer with Livestock Fence 1

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Tag:

fence trailer,

Dettagli dei prodotti

prodotti

Semi-remolchio a letto basso

semirimorchio per container

Rimorchio dei semi della parete laterale

Semi-remolchi per autoveicoli

Semi-remolchi di scarico/sbalzo

Van&Curtain Side Semi-Trailer

Recinto Semi Trailer

Semi-remolchi per il trasporto di animali

rimorchio dei semi dell'autocisterna

Trailers agricoli e altri full trailer

Howo autocarro con cassone ribaltabile

testa del trattore

Trailers speciali

Parti di ricambio per rimorchi

Nuovi veicoli di energia

Veicoli speciali

Custom Steel Sugar Cane Harvest Semi-Trailer with Livestock Fence

MOQ:	1 unità
imballaggio standard:	Standard di esportazione
Periodo di consegna:	25 giorni
metodo di pagamento:	T/t

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

Cina

Marca

AOTONG

Certificazione

ISO,CCC

Sospensione:

sospensioni meccaniche o pneumatiche

Specifiche di Tiro:

12R22.5

Fascio principale:

Un'operazione pesante, mi teletrasporto.

Pin di parentela:

Tipo di bullone 2/3.5

Sistema frenante:

Doppia camera d'aria, valvola del freno, serbatoi d'aria da 45L; ABS facoltativo

Elettrico:

Luce a LED, 7 vie, 24V

Pittura:

Sabbiatura e pulizia della ruggine, 1 mano di fondo, 2 mani di finitura

Quantità di ordine minimo:

1 unità

Imballaggi particolari:

Standard di esportazione

Tempi di consegna:

25 giorni

Termini di pagamento:

T/t

Evidenziare

steel sugar cane trailer

livestock fence semi-trailer

custom harvest semi-trailer
