Main size
Overall length
15000mm

Overall width
2700mm

Overall height
3100mm

Loading capacity
Loading 8 units of cars.
Capacity of 25Tons.

Chassis
Main beam
Material of high strength steel T700.
Height 400mm.
Welded by automatic submerged-processes.

Main cross beam
Material is high strength steel T700.
Welded by automatic submerged-arc processes

Posts
Main posts
Material of high tensile steel T700.
5 pairs of each trailer

Side bars
Material is high strength steel T700.
Multi numbers installed.

Floor
Material
Manganese steel plate floor thickness of 3mm.
Multi holes designed.
Yellow and red painted track.

Landing gear
20T model landing gear, brand Yahua, with static capacity of 50T.
Single speed linked type, operated at one side.

King pin
2 inches size, installed on the kingpin plate.
JOST brand.

Axle
2 sets of 13T model axles.
Axle beam 1840mm.
Axle loading 13000kgs.

Tire
Tire sized 10R22.5, Double Star or Triangle brand.
4 sets of tires assembled with wheel rim per trailer.

Wheel rim
Sized 8.0-20, Zhengxing brand.
4 pcs of wheel rim per trailer.

Hydraulic
Cylinders
5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars.
Youggu brand.

First unit
At the front post, out&back, extend 600mm.

Second unit
At the end post of gooseneck, out&back, extend 600mm.

Third unit
Under the aircraft style plate, to lift single car, out&back, extend 900mm.

Forth unit
At the post in front of tire, out&back, extend 900mm.

Fifth unit
At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.

Suspension
Mechanical steel suspension system, double axles type.
4 sets of leaf springs installed.

Brake sysem
Dual line air drum brake system with T30/30 type double brake chambers on each axle.

Light system
12v/24v light system.
LED lights, including side, rear, turning.

ABS system
ABS system installed, HN or Kemi brand.

Others
Color optional.
One set of standard tools in tool box.
One bag of belts for firming the cars.

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 0

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 1

Tag:

low bed semi trailer,

semi lowbed trailer,

low bed tractor trailer

Prodotti raccomandati

Video

2 assi 28 tonnellate Lowbed Lowboy Truck Trailer Semi-trailer per il trasporto di attrezzature pesanti

Contattaci ora

Video

3 assi di carico anteriore a letto basso rimorchio con collo di gallina idraulico staccabile e ABS opzionale

Contattaci ora

Video

Carico massimo 120 tonnellate Triasse Semi-remolchi pesanti con rampa e pareti laterali

Contattaci ora

Video

3-Axle 13T Car Carrier Semi Trailer with 500mm Main Beam

Contattaci ora

Video

Prezzo Ribassato Trasportatore Escavatore Pianale Ribassato Semirimorchio Con Rampa Idraulica Multi 3 4 5 Assi 40 60 80 120 100 Ton per Vendita

Contattaci ora

Video

Two, Three, Four Axle Gooseneck Flatbed Semi Truck with Low Deck, Lowboy, Loader, or Low Bed Semi Trailer

Contattaci ora

Video

Heavy-duty Customizable 3-Axis 60-120 Tons Foldable Construction Machinery Transportation Low-bed Trailer Trailer Truck

Contattaci ora

Dettagli dei prodotti

prodotti

Semi-remolchio a letto basso

semirimorchio per container

Rimorchio dei semi della parete laterale

Semi-remolchi per autoveicoli

Semi-remolchi di scarico/sbalzo

Van&Curtain Side Semi-Trailer

Recinto Semi Trailer

Semi-remolchi per il trasporto di animali

rimorchio dei semi dell'autocisterna

Trailers agricoli e altri full trailer

Howo autocarro con cassone ribaltabile

testa del trattore

Trailers speciali

Parti di ricambio per rimorchi

Nuovi veicoli di energia

Veicoli speciali

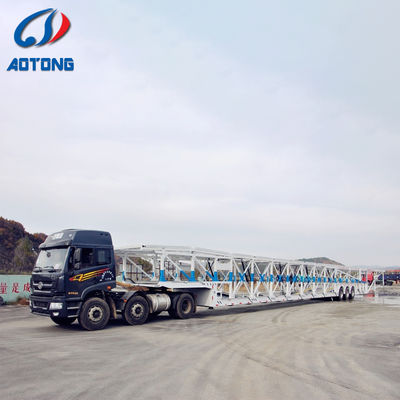

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS

MOQ:	1 unità
imballaggio standard:	Standard di esportazione
Periodo di consegna:	25 giorni
metodo di pagamento:	T/t

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

Cina

Marca

AOTONG

Certificazione

ISO,CCC

sospensione:

Sospensione meccanica o dell'aria

Specifiche dei pneumatici:

12R22.5

Raggio principale:

Duty Heavy I Beam.

Pin parente:

2 '' '/3,5' tipo bullone

Sistema di frenatura:

Doppia camera d'aria, valvola del freno, serbatoi d'aria 45L; ABS opzionale

Elettrico:

Luce a LED, 7 modi, 24V

Pittura:

Ruggine per esplosioni e pulite, 1 mano di pittura principale, 2 mani di pittura di finitura

Quantità di ordine minimo:

1 unità

Imballaggi particolari:

Standard di esportazione

Tempi di consegna:

25 giorni

Termini di pagamento:

T/t

Evidenziare

2-axle car carrier trailer with ABS

lowbed semi trailer 18T-28T capacity

heavy duty car carrier trailer ABS

Descrizione del prodotto

Main size
Overall length
15000mm

Overall width
2700mm

Overall height
3100mm

Loading capacity
Loading 8 units of cars.
Capacity of 25Tons.

Chassis
Main beam
Material of high strength steel T700.
Height 400mm.
Welded by automatic submerged-processes.

Main cross beam
Material is high strength steel T700.
Welded by automatic submerged-arc processes

Posts
Main posts
Material of high tensile steel T700.
5 pairs of each trailer

Side bars
Material is high strength steel T700.
Multi numbers installed.

Floor
Material
Manganese steel plate floor thickness of 3mm.
Multi holes designed.
Yellow and red painted track.

Landing gear
20T model landing gear, brand Yahua, with static capacity of 50T.
Single speed linked type, operated at one side.

King pin
2 inches size, installed on the kingpin plate.
JOST brand.

Axle
2 sets of 13T model axles.
Axle beam 1840mm.
Axle loading 13000kgs.

Tire
Tire sized 10R22.5, Double Star or Triangle brand.
4 sets of tires assembled with wheel rim per trailer.

Wheel rim
Sized 8.0-20, Zhengxing brand.
4 pcs of wheel rim per trailer.

Hydraulic
Cylinders
5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars.
Youggu brand.

First unit
At the front post, out&back, extend 600mm.

Second unit
At the end post of gooseneck, out&back, extend 600mm.

Third unit
Under the aircraft style plate, to lift single car, out&back, extend 900mm.

Forth unit
At the post in front of tire, out&back, extend 900mm.

Fifth unit
At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.

Suspension
Mechanical steel suspension system, double axles type.
4 sets of leaf springs installed.

Brake sysem
Dual line air drum brake system with T30/30 type double brake chambers on each axle.

Light system
12v/24v light system.
LED lights, including side, rear, turning.

ABS system
ABS system installed, HN or Kemi brand.

Others
Color optional.
One set of standard tools in tool box.
One bag of belts for firming the cars.

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 0

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 1

Tag:

Main size	Overall length	15000mm
	Overall width	2700mm
	Overall height	3100mm
	Loading capacity	Loading 8 units of cars. Capacity of 25Tons.
Chassis	Main beam	Material of high strength steel T700. Height 400mm. Welded by automatic submerged-processes.
Chassis	Main cross beam	Material is high strength steel T700. Welded by automatic submerged-arc processes
Posts	Main posts	Material of high tensile steel T700. 5 pairs of each trailer
Posts	Side bars	Material is high strength steel T700. Multi numbers installed.
Floor	Material	Manganese steel plate floor thickness of 3mm. Multi holes designed. Yellow and red painted track.
Landing gear	20T model landing gear, brand Yahua, with static capacity of 50T. Single speed linked type, operated at one side.
King pin	2 inches size, installed on the kingpin plate. JOST brand.
Axle	2 sets of 13T model axles. Axle beam 1840mm. Axle loading 13000kgs.
Tire	Tire sized 10R22.5, Double Star or Triangle brand. 4 sets of tires assembled with wheel rim per trailer.
Wheel rim	Sized 8.0-20, Zhengxing brand. 4 pcs of wheel rim per trailer.
Hydraulic Cylinders	5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars. Youggu brand.
	First unit	At the front post, out&back, extend 600mm.
	Second unit	At the end post of gooseneck, out&back, extend 600mm.
	Third unit	Under the aircraft style plate, to lift single car, out&back, extend 900mm.
	Forth unit	At the post in front of tire, out&back, extend 900mm.
	Fifth unit	At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.
Suspension	Mechanical steel suspension system, double axles type. 4 sets of leaf springs installed.
Brake sysem	Dual line air drum brake system with T30/30 type double brake chambers on each axle.
Light system	12v/24v light system. LED lights, including side, rear, turning.
ABS system	ABS system installed, HN or Kemi brand.
Others	Color optional. One set of standard tools in tool box. One bag of belts for firming the cars.
